CNC Press Brake
2. Good antiknock frame(welded-steel plate construction),whole frame is been tempering,reduce modification,using large-scale CNC milling machine,process in one time,insure high-precision.
3. Using international brand parts and cnc.
4. Visual operating system,easy operation,convenient,multi-functions and practical.
5. All parts are produced by cnc produce center,according to standard drawing.
6. High executive force,high standard and high professional machine assembled team.
7. Power safeguard design,with light curtain protection,open door power-off function,more safety when operating.
8. Fashion outlook,delicate,and beautiful,machines are compact design,small floor space,easy operation.
9. Providing comprehensive bending program for all press brake,shearing machine user.
10.Replaceable worktable and the upper and lower mound,no welding,forging and precision grinding.
11.Thickening the slider and the vertical plate, to ensure the stability of the machine tool and reduce the elasticity.
12.Rational layout of the oil pipeline design, to prevent the oil temperature rise quickly.
13.The similarity of images and shipping machine can reach 99.5%.
14.In time fast delivery.
|
Model
|
WC67K 100T 3200
|
||
|
Pressing force
|
1000
|
KN
|
|
|
Working length
|
3200
|
MM
|
|
|
Distance between uprights
|
2600
|
MM
|
|
|
Stroke
|
350
|
MM
|
|
|
Max opening height
|
400
|
MM
|
|
|
Table width
|
200
|
MM
|
|
|
Motor
|
7.5
|
KW
|
|
|
Overall Dimension
|
3800*1650*2355
|
MM
|
|
Main Configuration

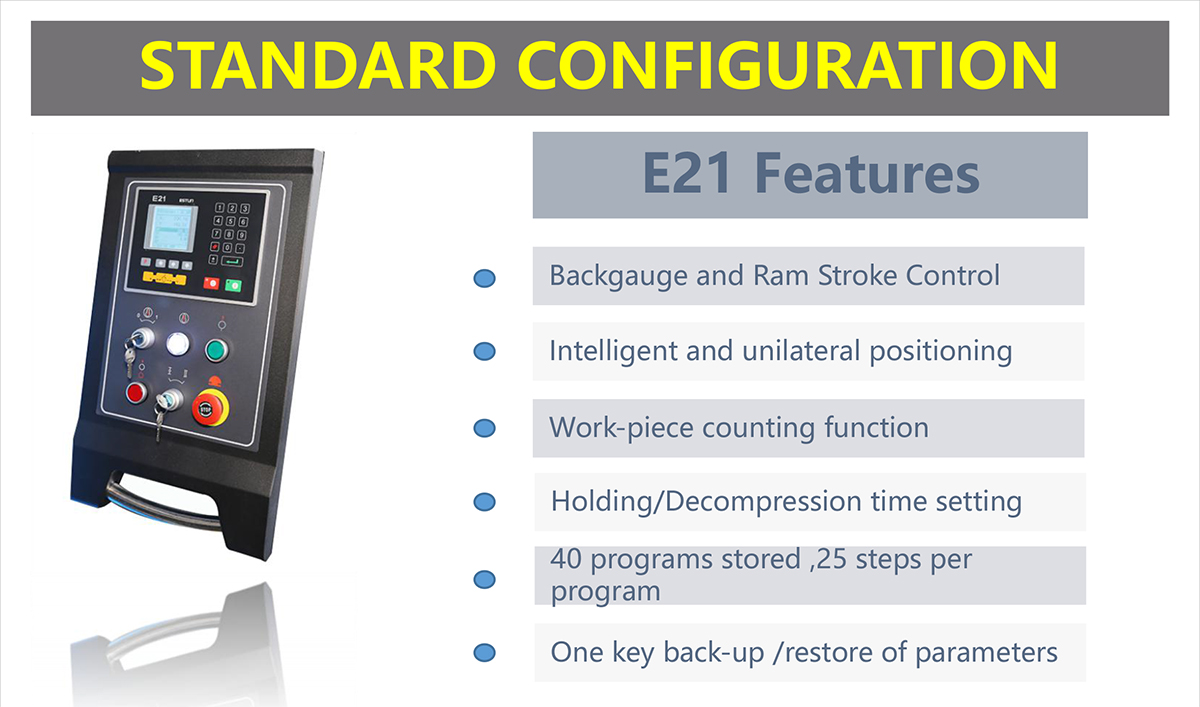

E21 Controller
Adopting HIWIN ball screw and linear guide rail, accuracy 0.01mm
Front supporter bracket
Germany Bosch Rexroth hydraulic valve block
Germany EMB oil tube connector
Germany Siemens main motor
France Schneider electrics
Hydraulic & electrical overload protection
Automatic Mechanical compensation
Upper and lower dies(86°, R0.6mm, material: 42CrMo)
Safety Equipment:
Safety Standards(2006/42/EC)
1.EN 12622:2009+a1:2003
2.EN ISO 12100:20110
3.EN 60204-1:2006+A1:2009
