Technical Data
|
GW3648D-ES
|
GW5048D-ES
|
||
|
Battery Input Data |
Battery Type
|
Li-Ion
|
||
|
Nominal Battery Voltage (V)
|
48
|
|||
|
Max. Charging Voltage (V)
|
≤60 (Configurable)
|
|||
|
Max. Charging Current (A)*1
|
75
|
100
|
||
|
Max. Discharging Current (A)*1
|
75
|
100
|
||
|
Battery Capacity (Ah)*2
|
50~2000
|
|||
|
Charging Strategy for Li-Ion Battery
|
Self-adaption to BMS
|
|||
|
PV String Input Data |
Max. DC Input Power (W)
|
4600
|
6500
|
|
|
Max. DC Input Voltage (V)
|
580
|
|||
|
MPPT Range (V)
|
125~550
|
|||
|
Start-up Voltage (V)
|
125
|
|||
|
Min. Feed-in Voltage (V)*3
|
150
|
|||
|
MPPT Range for Full Load (V)
|
170~500
|
215~500
|
||
|
Nominal DC Input Voltage (V)
|
360
|
|||
|
Max. Input Current (A)
|
11/11
|
|||
|
Max. Short Current (A)
|
13.8/13.8
|
|||
|
No. of MPP Trackers
|
2
|
|||
|
No. of Strings per MPP Tracker
|
1
|
|||
|
AC Output Data (On-grid)
|
Nominal Apparent Power Output to Utility Grid (VA)*8
|
3680
|
4600
|
|
|
Max. Apparent Power Output to Utility Grid (VA)*4*9
|
3680
|
5100
|
||
|
Max. Apparent Power from Utility Grid (VA)
|
7360
|
9200
|
||
|
Nominal Output Voltage (V)
|
230
|
|||
|
Nominal Output Freqency (Hz)
|
50/60
|
|||
|
Max. AC Current Output to Utility Grid (A)
|
16
|
24.5*5
|
||
|
Max. AC Current from Utility Grid (A)
|
32
|
40
|
||
|
Output Power Factor
|
~1(Adjustable from 0.8 leading to 0.8 lagging)
|
|||
|
Output THDi (@Nominal Output)
|
<3%
|
|||
|
AC Output Data (Back-up) |
Max. Output Apparent Power (VA)
|
3680
|
4600
|
|
|
Peak Output Apparent Power (VA)*6
|
5520,10sec
|
6900,10sec
|
||
|
Max. Output Current (A)
|
16
|
20
|
||
|
Nominal Output Voltage (V)
|
230 (±2%)
|
|||
|
Nominal Output Freqency (Hz)
|
50/60 (±0.2%)
|
|||
|
Output THDv (@Linear Load)
|
<3%
|
|||
|
Efficiency
|
Max. Efficiency
|
97.6%
|
||
|
Max. Battery to Load Efficiency
|
94.0%
|
|||
|
European Efficiency
|
97.0%
|
|||
|
General Data |
Operating Temperature Range (°C)
|
-25~60
|
||
|
Relative Humidity
|
0~95%
|
|||
|
Operating Altitude (m)
|
≤4000
|
|||
|
Cooling
|
Natural Convection
|
|||
|
Noise (dB)
|
<25
|
|||
|

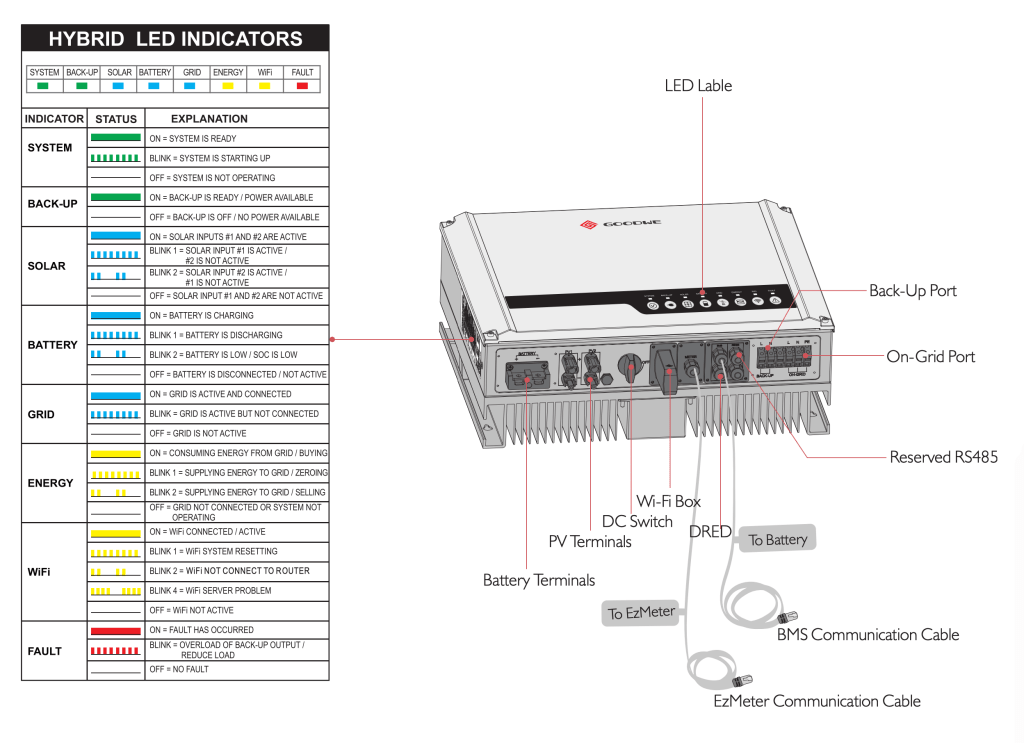

User Interface
|
LED & APP
|
|||
|
Communication with BMS*7
|
RS485; CAN
|
|||
|
Communication with Meter
|
RS485
|
|||
|
Communicaiton with Portal
|
Wi-Fi
|
|||
|
Weight (kg)
|
28
|
30
|
||
|
Size (Width*Height*Depth mm)
|
516*440*184
|
|||
|
Mounting
|
Wall Bracket
|
|||
|
Protection Degree
|
IP65
|
|||
|
Standby Self-Consumption (W)
|
<13
|
|||
|
Topology
|
Battery Isolation
|
|||
GROWATT sph3500 5000es Hybrid Inverter Off Grid Solar Inverter
$520.00 – $650.00 / piece
1 piece
Solar Panel System Hybrid Off Grid All Black 5kw 8kw 10kw 12kw Home Solar System
$0.45 – $0.69 / watt
8000 watts
Deye Solar Inverter 380v 8kw 10kw 12kw Triple Phase Deye Inverter For Europe
$1,900.00 – $2,350.00 / set
1 set
China Full Black Solar Panels Mono Crystalline Half-cut Cell All Black Solar Panels For Solar Home System
$0.29 – $0.33 / watt
13500 watts
Lovsun 445 Watt 450watt 455W Mono Power Solar Modules Solar Panels
$0.19 – $0.27 / watt
111400 watts
48V 2kwh 5kwh 7kwh 10kwh Solar Inverter Lithium Batteries for Solar Systems
$959.00 – $1,049.00 / set
2 sets
LiFePO4 Lithium Battery 100Ah 200Ah Power Mounted Wall Battery
$1,650.00 – $2,000.00 / piece
1 piece
Hybrid Solar Inverter 48V 5KW 3KW Off Grid All-in One MPPT Inverter
$449.00 – $489.00 / unit
1 unit


|
Payment Terms |
T/T |
EXW
|
30% in advance for deposit payment, the balance payments will be paid before shipment.
|
|
|
FOB
|
||||
|
CFR/C&F
|
30% in advance for deposit payment, the balance will be paid against copy of B/L
|
|||
|
CIF
|
||||
|
L/C
|
For the amount of one shipment above 50,000 usd, L/C at sight is acceptable.
|
|||
|
West Union
|
For the amount less than 5000 usd
|
|||
|
Paypal
|
||||
|
Delivery Time
|
7~25 days after receiving the payment or the deposit payment
|
|||
Products quality protection
Payment safety protection
The third party inspection is optional
Send your message to this supplier
| OUTPUT POWER | 3680W, 4600W |
|---|---|
| GIFT OPTION | NO, YES |
