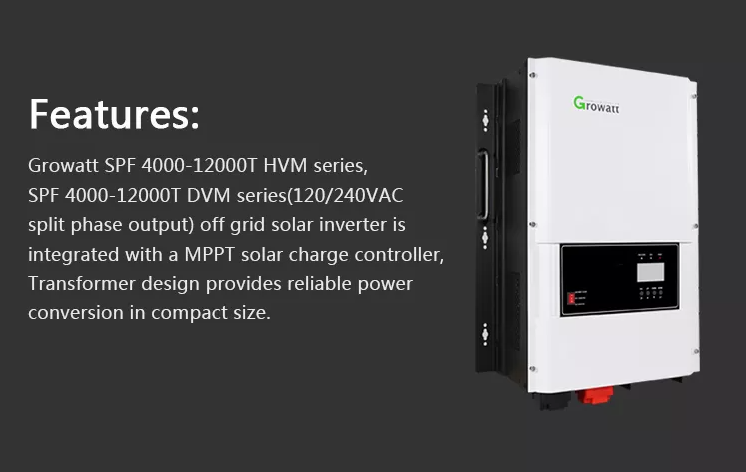

Growatt SPF 4000T~12000T DVM
|
Datasheet
|
SPF 4KT HVM
|
SPF 5KT HVM
|
SPF 6KT HVM
|
SPF 8KT HVM
|
SPF 10KT HVM
|
SPF 12KT HVM
|
|
Battery voltage
|
48VDC
|
|||||
|
Battery type
|
Lithium/Lead-acid
|
|||||
|
INVERTER OUTPUT
|
||||||
|
Rated power
|
4KW
|
5KW
|
6KW
|
8KW
|
10KW
|
12KW
|
|
Surge rating
|
12KW
|
15KW
|
18KW
|
24KW
|
30KW
|
36KW
|
|
Waveform
|
pure sine wave
|
|||||
|
Output voltage
|
220/230/240VAC
|
|||||
|
Output frequency
|
50/60HZ
|
|||||
|
Inverter efficiency
|
>85%
|
|||||
|
Line model efficiency
|
>95%
|
|||||
|
Power factor
|
1.0
|
|||||
|
Transfer time
|
10ms typical,20ms max
|
|||||
|
SOLAR CHARGER
|
||||||
|
Maximum pv charge current
|
80A
|
120A
|
||||
|
Maximum pv array power
|
5000W
|
7000W
|
||||
|
Number of independent mppt tracker/strings per mppt tracker
|
1/1
|
2/1
|
||||
|
MPPT range
|
60-145VDC
|
|||||
|
Maximum pv array open circuit voltage
|
150VDC
|
|||||
|
Maximum efficiency
|
>98%
|
|||||
|
AC INPUT
|
||||||
|
Voltage
|
230VAC
|
|||||
|
Selectable voltage range
|
154-272VAC(for appliance),184-272VAC(for UPS)
|
|||||
|
Frequency range
|
50/60HZ
|
|||||
|
Maximum charge current
|
40A
|
50A
|
60A
|
70A
|
80A
|
100A
|
|
MECHANICAL SPECIFICATIONS
|
||||||
|
Protection degree
|
IP20
|
|||||
|
Dimension(W/H/D)
|
360/540/218mm
|
380/650/255mm
|
||||
|
Net weight(kg)
|
38
|
41
|
45
|
64
|
66
|
75
|
|
AC INPUT
|
||||||
|
Voltage
|
230VAC
|
|||||
|
Selectable voltage range
|
154-272VAC(for appliance),184-272VAC(for UPS)
|
|||||
|
Frequency range
|
50/60HZ
|
|||||
|
Maximum charge current
|
40A
|
50A
|
60A
|
70A
|
80A
|
100A
|
|
MECHANICAL SPECIFICATIONS
|
||||||
|
Protection degree
|
IP20
|
|||||
|
Dimension(W/H/D)
|
360/540/218mm
|
380/650/255mm
|
||||
|
Net weight(kg)
|
38
|
41
|
45
|
64
|
66
|
75
|
|
SOLAR CHARGER
|
||||||
|
Maximum pv charge current
|
80A
|
120A
|
||||
|
Maximum pv array power
|
5000W
|
7000W
|
||||
|
Number of independent mppt tracker/strings per mppt tracker
|
1/1
|
2/1
|
||||
|
MPPT range
|
60-145VDC
|
|||||
|
Maximum pv array open circuit voltage
|
150VDC
|
|||||
|
Maximum efficiency
|
>98%
|
|||||
|
AC INPUT
|
||||||
|
Voltage
|
240VAC
|
|||||
|
Selectable voltage range
|
154-272VAC(for appliance),184-272VAC(for UPS)
|
|||||
|
Frequency range
|
50/60HZ
|
|||||
|
Maximum charge current
|
40A
|
50A
|
60A
|
70A
|
80A
|
100A
|
|
MECHANICAL SPECIFICATIONS
|
||||||
|
Protection degree
|
IP20
|
|||||
|
Dimension(W/H/D)
|
360/540/218mm
|
380/650/255mm
|
||||
|
Net weight(kg)
|
42
|
47
|
52
|
64
|
66
|
75
|
|
OPERATING ENVIRONMENT
|
||||||
|
Operation temperature range
|
0-45 degree
|
|||||
