Q35Y-20 series hydraulic ironworker
-Adopt Hydraulic drive, easily to finish punching plate, channel, angle, I-beam, and other metal materials. With different stamping dies to achieve different functions, complete the short stroke of stamping parts. The machine adopts two operating cylinders, divided working into two regions, working alone, linked simultaneously or work independently can be chosen freely. Machine running smoothly, punching and stamping without vibration noise, it is the ideal stamping machinery.
Details Images
Main Features
Punching

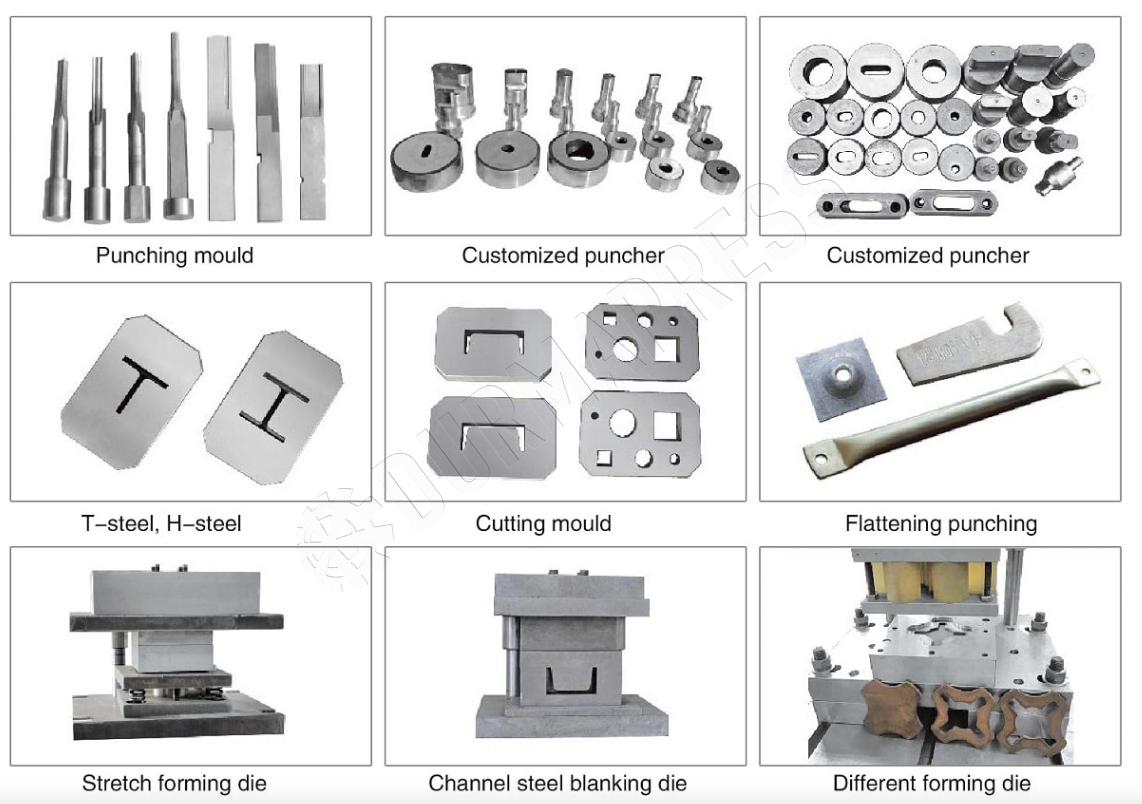

Full range of universal punches and dies are available.unique style allows for large angle iron punching and large channel
punching.Large viewing window on stripper swing away design for ease of operation.large two piece gauging table with rulers and stop as standard fittings. Quick change coupling nut and sleeve for rapid replacement of change.
Shearing
Round and square bar shear has multiple holes for a variety of sizes. Adjustable hold down device for round/square
bar,channel/beam cutting. Large strong guarding for max safety. The angle shear has the ability to cut angle at 45°both top and bottom leg.This gives the operator the ability to make a picture frame corner for perfect welds. Diamond shaped blade for quality cuts that is minimal material lost and deformity. Easily adjustable hold-down device for accurate plate cutting.large 15″squaring arm with inlaid scale.Special anti-distorted blade for quality cutting.Lower blade has four usable edges. There is screw allow for gap adjust no shim needed.
Notching
Unique design allows for cutting of angle and flat bar. Electrical interlock safety guard and three gauging stops for precise
positioning.The notching section of this hydraulic iron worker is perfect for notching out metal plate, angle iron and much more. The notching station also has an oversized table with material stops. This section of the machine can also be outfitted with the optional vee notcher.
Bending
Also bend the plate below 500mm. All the components of Machine are of the highest quality in their safety, function, capability and maintenance.
Full range of universal punches and dies are available.unique style allows for large angle iron punching and large channel
punching.Large viewing window on stripper swing away design for ease of operation.large two piece gauging table with rulers and stop as standard fittings. Quick change coupling nut and sleeve for rapid replacement of change.
Shearing
Round and square bar shear has multiple holes for a variety of sizes. Adjustable hold down device for round/square
bar,channel/beam cutting. Large strong guarding for max safety. The angle shear has the ability to cut angle at 45°both top and bottom leg.This gives the operator the ability to make a picture frame corner for perfect welds. Diamond shaped blade for quality cuts that is minimal material lost and deformity. Easily adjustable hold-down device for accurate plate cutting.large 15″squaring arm with inlaid scale.Special anti-distorted blade for quality cutting.Lower blade has four usable edges. There is screw allow for gap adjust no shim needed.
Notching
Unique design allows for cutting of angle and flat bar. Electrical interlock safety guard and three gauging stops for precise
positioning.The notching section of this hydraulic iron worker is perfect for notching out metal plate, angle iron and much more. The notching station also has an oversized table with material stops. This section of the machine can also be outfitted with the optional vee notcher.
Bending
Also bend the plate below 500mm. All the components of Machine are of the highest quality in their safety, function, capability and maintenance.
