Products Description
Model
|
430W
|
435W
|
440W
|
450W
|
455W
|
Numbers of solar cells
|
144(6*24)
|
||||
Open Circuit Voltage
|
48.5V
|
48.7V
|
48.9V
|
49.1V
|
49.3V
|
Short Circuit Current
|
11.23A
|
11.31A
|
11.39A
|
11.46A
|
11.53
|
Maximum Power Voltage
|
30.42V
|
30.62V
|
30.82V
|
31.02V
|
31.22V
|
Maximum Power Current
|
40.7V
|
40.9V
|
41.1V
|
41.3V
|
41.5V
|
MODULE EFFICIENCY
|
19.8%
|
20.2%
|
20.4%
|
20.8%
|
21%
|
Under Standard Test Conditions(STC) of irradiance of 1000W/m²,spectrum AM 1.5 and cell temperature of 25℃
|
|||||
Wind Load/Snow Load
|
2400pa/5400pa
|
||||
Fuse Current
|
25A
|
Details Images

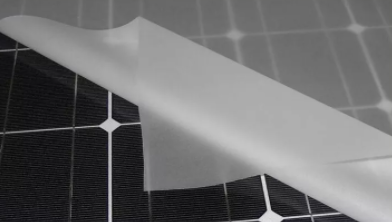

EVA Sealed Film
*Sealed adhesive durability more than 30 years
Laser Half Cut Cell
*process optimization and careful module BOM selection
* Both 6BB&9BB available
Junction Box
*Waterproof grade IP68
*Good heat dissipation performance, low loss, long service life

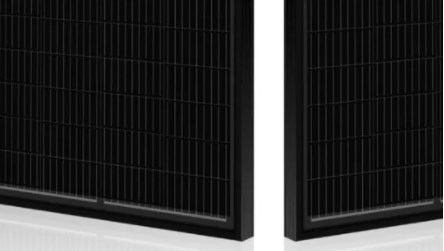

Black aluminum frame
Black backsheet
Max. Power | 430W, 440w, 450W, 425W |
---|---|
GIFT OPTION | NO, YES |
