Trina Technology

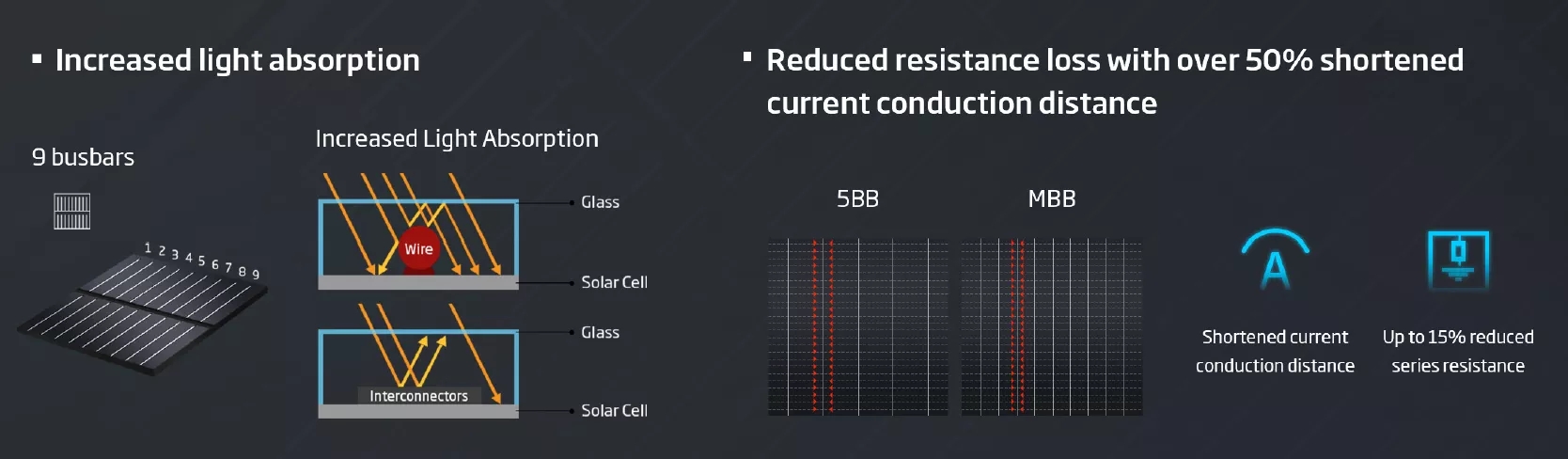

Multi-busbar Technology

In comparison with the conventional 5 busbar design, the innovative multi-busbar design on the cell can shorten the current collection transverse path by 50% and thereby reduce remarkably the cell internal resistance, which contributes a 1% – 1.5% increase in the power output compared with 5 busbar design.
The MBB design can also mitigate the performance loss caused by blocked electrical pathways in case of cell microcracks and finger electrode erosion due to external factors.

PERC Technology

PERC Cell
The PERC cell has a passivated rear side and a laser grooving process, which significantly improves the cell efficiency.

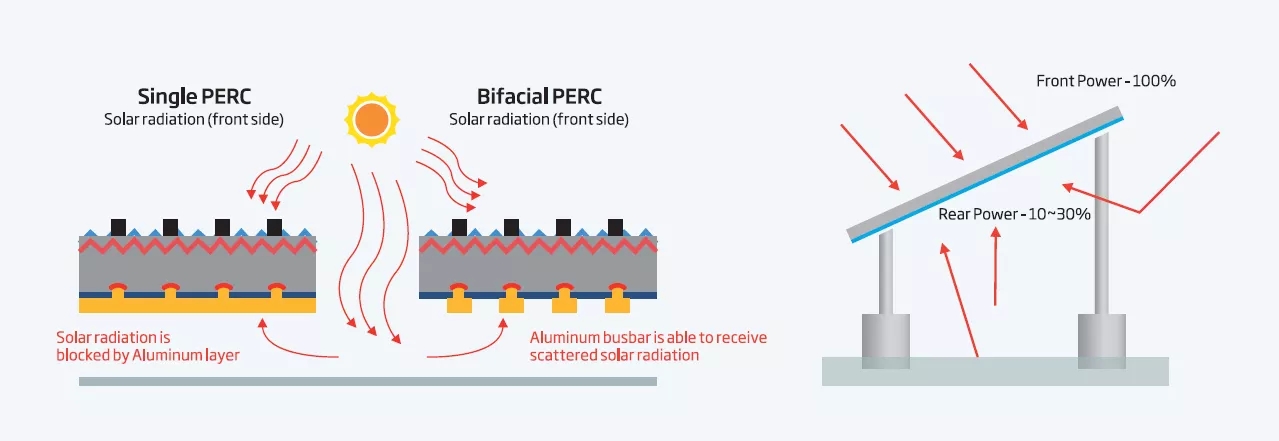

Bifacial PERC
For a bifacial PERC cell, the Al back surface field is replaced by Al grid, hence render the majority of rear side transparent
which enable the cell to absorb light and generate electricity from both sides.

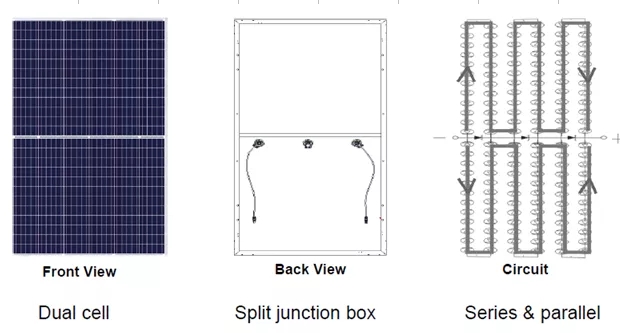

Half-cut Technology

Half-cut cell technology is to cut the cell into two seperate parts by mature infrared laser, hence halve the working current. The
thermal loss on the ribbon will be remarkably reduced and the module’s power increases by 2%. The reliability of module is also
enhanced.
The combination of half-cut cell technology and bifacial module can amplify the gain over the effect of current-reduction.

Electrical Data

Vertex(Backsheet)	DE18M(II)	DE19	DE20
Power range	485W~510W	530W-555W	585W-605W
Power Tolerance-PMAX (W)	0 ~ +5W
Maximum Power Voltage-VMPP (V)	42.2~43.2V	30.8~31.8V	33.8~34.6V
Maximum Power Current-IMPP (A)	11.49~11.81A	17.21~17.45A	17.31~17.49A
Open Circuit Voltage-VOC (V)	51.1~52.1V	37.1~38.1V	40.9~41.7V
Short Circuit Current-ISC (A)	12.07~12.42A	18.31~18.56A	18.37~18.57A
Module Efficiency (%)	20.1~21.2	20.3~21.2	20.7~21.4

Vertex(Bifacial)	DEG18MC.20(II)	DEG19C.20	DEG20C.20
Power range	480~505W	525W~550W	580W~600W
Power Tolerance-PMAX (W)	0 ~ +5W
Maximum Power Voltage-VMPP (V)	42.2~43.7V	30.8~31.8V	33.8~34.6V
Maximum Power Current-IMPP (A)	11.38~11.56A	17.04~17.29A	17.16~17.34A
Open Circuit Voltage-VOC (V)	50.7~51.7V	37.1~38.1V	40.9~41.7V
Short Circuit Current-ISC (A)	11.97~12.17A	18.14~18.39A	18.21~18.42A
Module Efficiency (%)	20.1~21.2	20.1~21.0	20.5~21.2

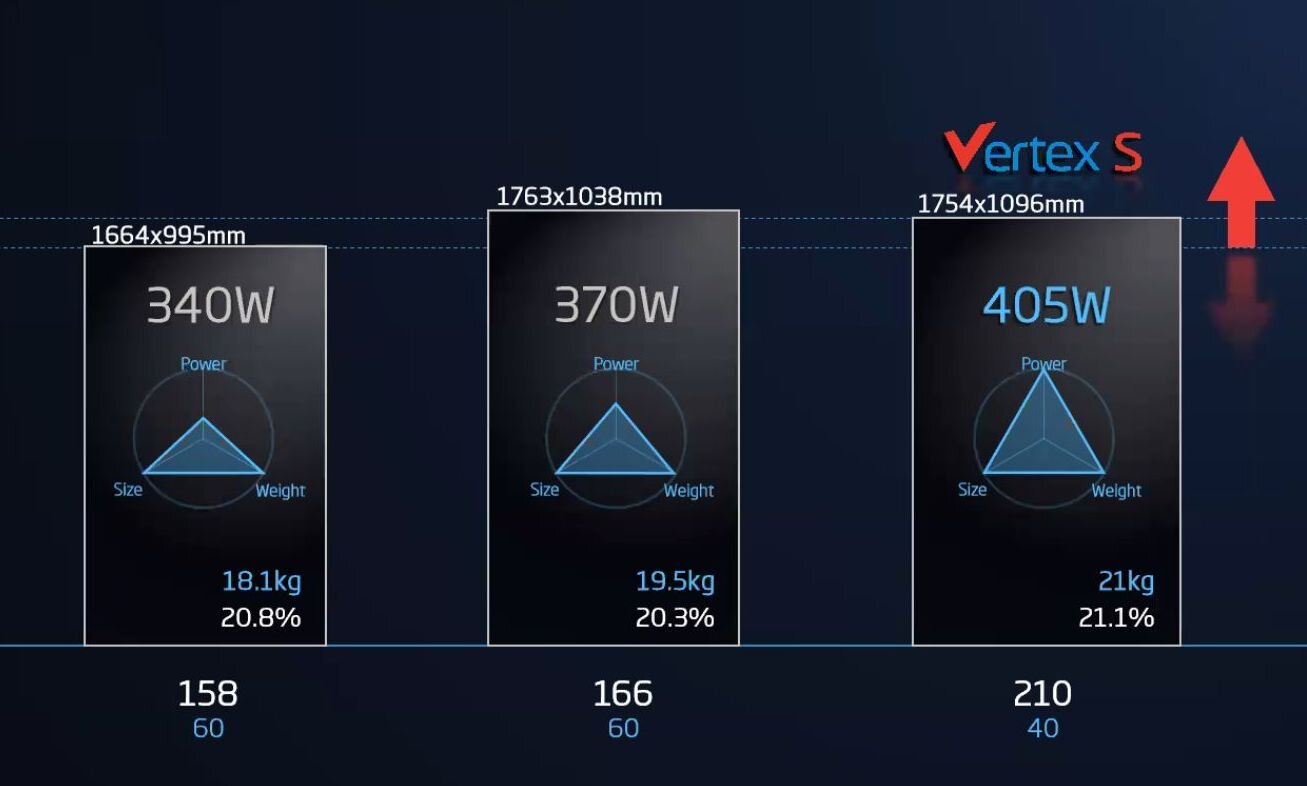

Vertex S	DE09	DE09.05	DE09.08(Black frame)
Power range	390W~405W	380W~395W	390~405W
Power Tolerance-PMAX (W)	0 ~ +5W
Maximum Power Voltage-VMPP (V)	33.8~34.4V	33.4~34.0V	33.8~34.4V
Maximum Power Current-IMPP (A)	11.54~11.77A	11.38~11.62A	11.54~11.77A
Open Circuit Voltage-VOC (V)	40.8~41.4V	40.4~41.0V	40.8~41.4V
Short Circuit Current-ISC (A)	12.14~12.34A	12.00~12.21A	12.14~12.34A
Module Efficiency (%)	20.3~21.1	19.8~20.5	20.3~21.1

Others	Honey M: DE08M(II)	Tallmax M: DE17M(II)	Duomax Twin(Bifacial)144: DEG17MC.20(II)
Power range	360W~380W	435W~460W	430W~450W
Power Tolerance-PMAX (W)	0 ~ +5W
Maximum Power Voltage-VMPP (V)	33.6~34.7V	40.5~41.3V	40.5~41.7V
Maximum Power Current-IMPP (A)	10.7~10.96A	10.74~11.13A	10.62~10.8A
Open Circuit Voltage-VOC (V)	40.7~41.9V	49~50V	48.7~49.5V
Short Circuit Current-ISC (A)	11.24~11.52A	11.31~11.68A	11.2~11.36A
Module Efficiency (%)	19.6~20.7	19.9~21.0	19.5~20.4

STC: Irradiance 1000W/m2, Cell Temperature 25°C, Air Mass AM1.5.

Measuring tolerance: ±3%
