Product Details

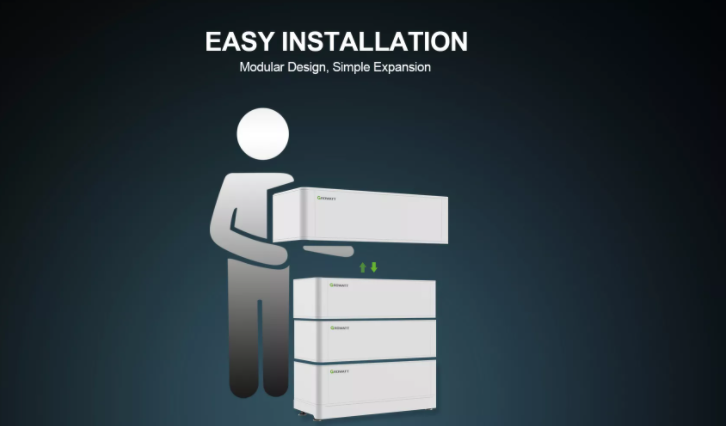

EASY INSTALLATION
Support Wall Mounted
Floor Installation Requires Extra Base
Flexible Capacity Options, 7.68kWh-25.6kWh

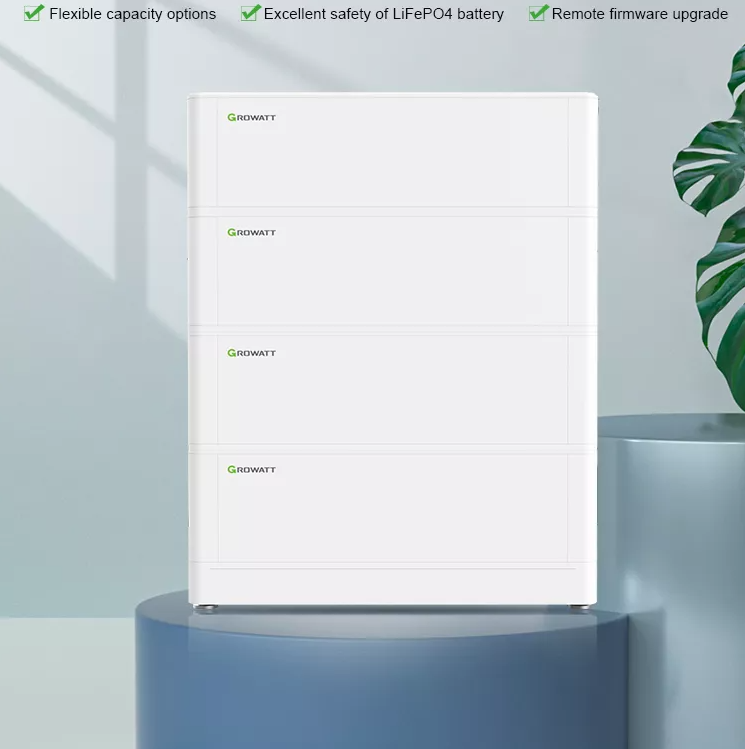

Modular & Stacked Design, Simple Expansion
SAFE & RELIABLE
Battery Charge Temperature : 0℃-50℃
Battery Discharge Temperature :-10℃-50℃
Multi-Level Protections from Inverter & BMS
Cobalt Free Lithium Iron Phosphate(LFP)

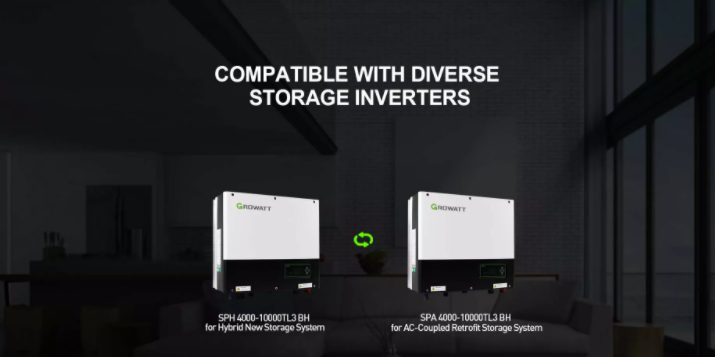

COMPATIBLE WITH STORAGE INVERTERS
Suitable for SPH4000-10000TL3 BH
Suitable for SPA4000-10000TL3 BH
Hybrid Solar Energy Storage System
AC-Coupled Retrofit Storage System

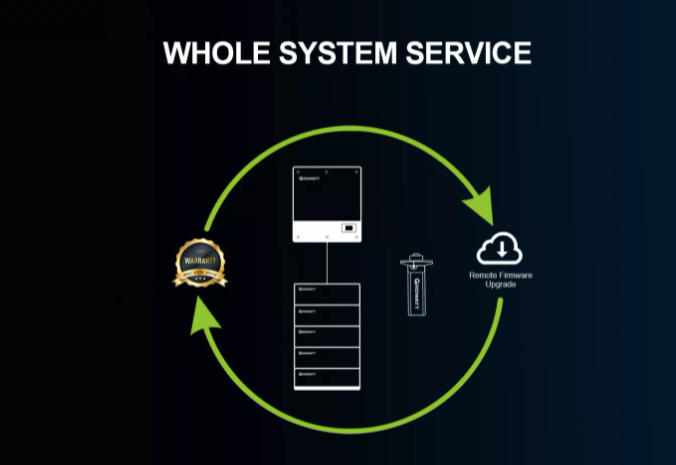

WHOLE SYSTEM SERVICE
Ark HV Lithium Ion Battery
Off Grid & Hybrid Inverter Optional
WiFi Module/GPRS Optional
Remote Firmware Upgrade
10 Years Waranty for Battery
Can Communicate Port
With BMS Monitoring Function
|
Growatt Battery
|
ARK7.6H
|
ARK10.2H
|
ARK12.8H
|
ARK15.3H
|
|
Battery Module
|
ARK2.5-A1 (2.56KWH,51.2V,28KG)
|
|||
|
Number of Modules
|
3
|
4
|
5
|
6
|
|
Energy capacity
|
7.68KWH
|
10.24KWH
|
12.8KWH
|
15.36KWH
|
|
Usable capacity
|
6.9KWH
|
9.21KWH
|
11.52KWH
|
13.81KWH
|
|
Norminal voltage
|
153.6V
|
204.8V
|
256V
|
307.2V
|
|
Operating voltage range
|
141.6-170.4V
|
188.8-227.2V
|
236-284V
|
283.2-340.8V
|
|
Dimension(W*D*H)
|
650/260/725mm
|
650/260/905mm
|
650/260/1085mm
|
650/260/1265mm
|
|
Weight
|
91kg
|
118kg
|
145kg
|
172kg
|
|
Growatt Battery
|
ARK17.9H
|
ARK20.4H
|
ARK23.0H
|
ARK25.6H
|
|
Battery Module
|
ARK2.5-A1 (2.56KWH,51.2V,28KG)
|
|||
|
Number of Modules
|
7
|
8
|
9
|
10
|
|
Energy capacity
|
17.92KWH
|
20.48KWH
|
23.04KWH
|
25.6KWH
|
|
Usable capacity
|
16.12KWH
|
18.43KWH
|
20.73KWH
|
23.4KWH
|
|
Norminal voltage
|
358.4V
|
409.6V
|
460.8V
|
512V
|
|
Operating voltage range
|
330.4-397.6V
|
377.6-454.4V
|
424.8-511.2V
|
472-568V
|
|
Dimension(W*D*H)
|
650*260*1445mm
|
650*260*1625mm
|
650*260*1805mm
|
650*260*1985mm
|
|
Weight
|
199kg
|
226kg
|
253kg
|
280kg
|
|
General
|
||||
|
Battery type
|
Gobalt Free Lithium Iron Phosphate(LFP)
|
|||
|
Standard Charge/Discharge Current
|
25A/0.5C
|
|||
|
IP Protection
|
IP65
|
|||
|
Installation
|
Wall-Mounted or Floor Installation*2
|
|||
|
Operation Temperature
|
-10-50°C*
|
|||
|
Warranty
|
10Years
|
|||
|
BMS Controller
|
HVC60051-A1
|
|||
|
Weight
|
8kg
|
|||
|
Communication Port
|
CAN
|
|||
|
Dimension(W*D*H)
|
650*260*185mm
|
|||
|
BMS Monitoring Parameters
|
SOC,System Voltage,current, cell voltage,cell temperature,PCBA temperature measurement
|
|||
|
Certification&Licensing
|
IEC 62619(cell&pack),CE,CEC,RCM,UN38.3
|
|||
HVC 60050-A1 (high voltage controller)
and communication terminals. The appearance of the product is shown as below.

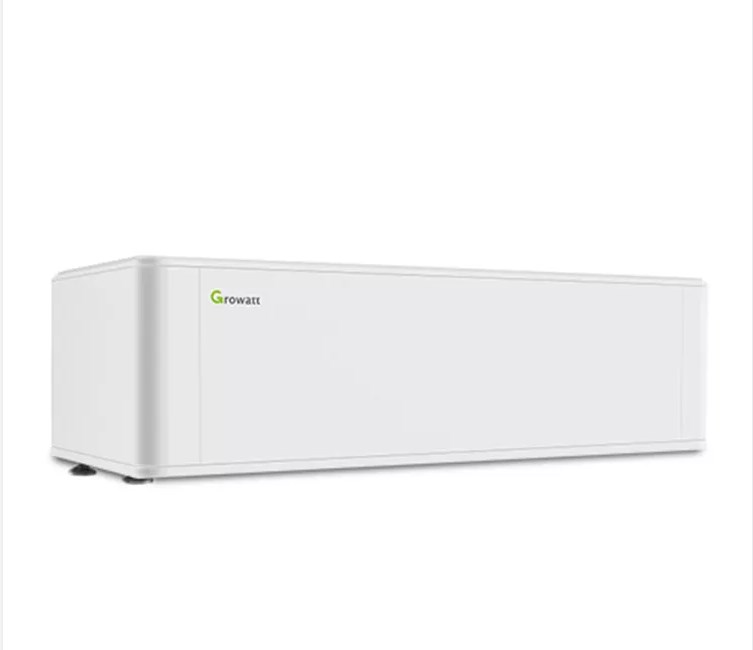

ARK 2.5H-A1 (battery pack)
communication terminals. Product appearance is shown as below.
