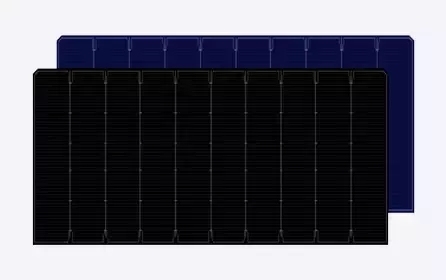

Mono ALL BLACK
*Gallium-doped Technology
*Half Cut Cell Technology
*Anti-PID&Low-LID Performance
*Less Hot Spot Shading Effects
*Ideal for Residential&Commercial Application
Electrical Data
|
166mm Series(STC)
|
|||
|
Model
|
LS166 360-375W HB
|
LS166 395-410W HB
|
LS166 435-450W HB
|
|
Numbers of solar cells
|
120(60*2)
|
132(66*2）
|
144(72*2)
|
|
Power Tolerance
|
0~+5W
|
||
|
Maximum power range(Pmax)
|
360W-375W
|
395W-410W
|
435W-450W
|
|
Open Circuit Voltage (Voc)
|
40.79V-41.37V
|
45.56V-46.23V
|
49.4V-49.98V
|
|
Short Circuit Current (Isc)
|
11.18A-11.42A
|
11.19A-11.39A
|
11.36A-11.54A
|
|
Voltage at Maximum power (Vmpp)
|
33.71V-34.34V
|
36.93V-37.64V
|
40.81V-41.4V
|
|
Current Maximum Power (Impp)
|
10.68A-10.92A
|
10.70A-10.89A
|
10.66A-10.87A
|
|
MODULE EFFICIENCY (%)
|
19.73-20.55
|
19.75-20.5
|
19.98-20.67
|
|
182mm Series(STC)
|
|||
|
Model
|
LS182 485-500W HB
|
LS182 530-545W HB
|
LS182 575-590W HB
|
|
Numbers of solar cells
|
132(66*2）
|
144(72*2)
|
156(78*2)
|
|
Power Tolerance
|
0~+5W
|
||
|
Maximum power range(Pmax)
|
485W-500W
|
530W-545W
|
575W-590W
|
|
Open Circuit Voltage (Voc)
|
48.34V-48.83V
|
49.74V-50.18V
|
50.45V-51.02V
|
|
Short Circuit Current (Isc)
|
12.99A-13.2A
|
13.62A-13.83A
|
14.41A-14.57A
|
|
Voltage at Maximum power (Vmpp)
|
40.08V-40.62V
|
41.63V-42.12V
|
43.04V-43.48V
|
|
Current Maximum Power (Impp)
|
12.10A-12.31A
|
12.73A-12.94A
|
13.36A-13.57A
|
|
MODULE EFFICIENCY (%)
|
20.42-21.06
|
20.51-21.09
|
20.57-21.11
|
Temperature Ratings ( STC )
Temperature Coefficient of Isc +0.05%/C
Temperature Coefficient of Pmax -0.36%/C
Front Side Maximum Static Loading 5400Pa
*Top quality EVA sealed film in China *Resistance in both high and low temperatures
*Sealed adhesive durability more than 30 years
*process optimization and careful module BOM selection
*Laser accurately cut
* Both 6BB&9BB available
*Standard photovoltaic cable, dedicated photovoltaic MC4 connector
*Waterproof grade IP68
*Good heat dissipation performance, low loss, long service life
Heavy thickness anodized aluminum alloy, passed the salt spay test, for long-term outside use.
| GIFT OPTION | NO, YES |
|---|
