*0~+5W positive power tolerance
*PID Protection
*Higher performance under low light.
*MBB cell technology.
*Maximum system voltage:1500V *Junction box:IP68
*Frame:Aluminum alloy
*Cell amount:72*2pcs
Application level:Class A
*12Years product warranty,25 Years power output guarantee.

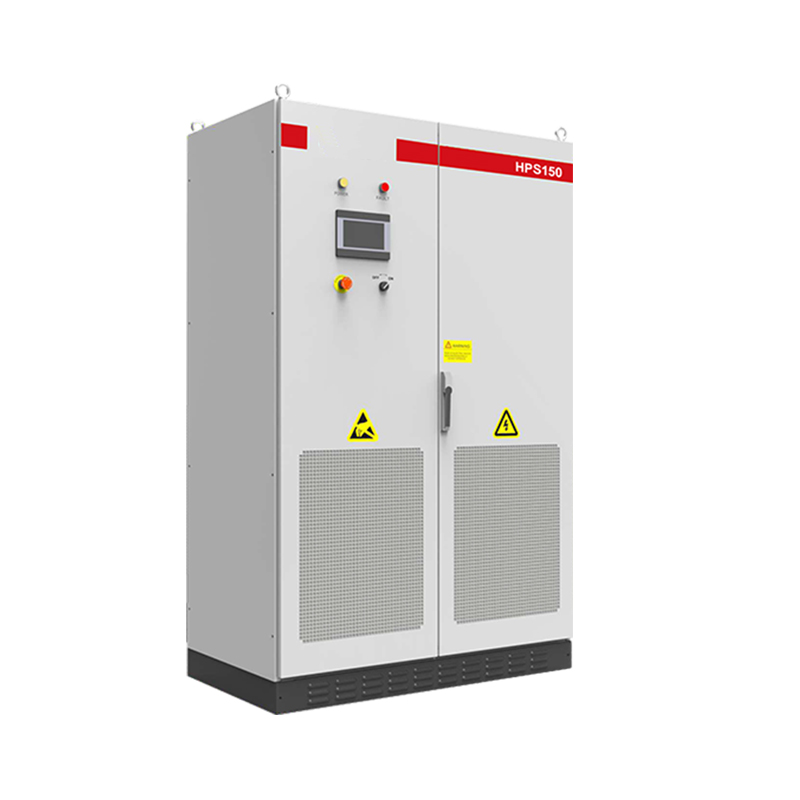

*Peak-shaving, back-up, use the system however you want it
*Scalable design:Quadruple capacity by paralleling 4 units
*One inverter fails in parallel system, the other(s) takes over seamlessly. *Touchscreen LCD
*Uninterruptable power supply guaranteed
*Supports remote control of DG

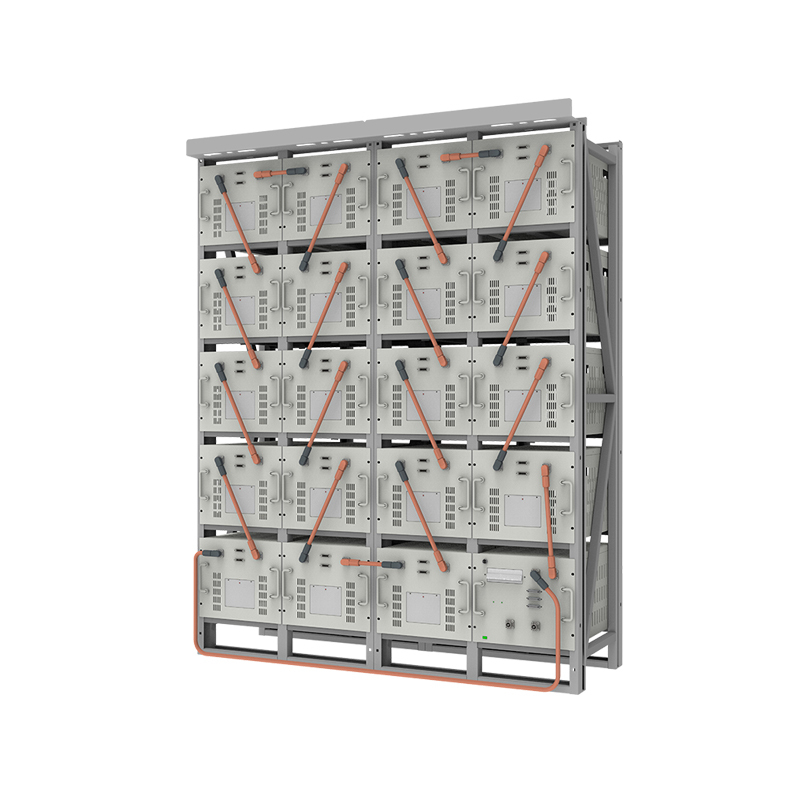

*LFP high-capacity Li-Ion battery with aluminum shell,over 130wh/kg
*Self-developed 3-level BMS, complex protection, safe and reliable
*Long cycle life, 6000 cycles *Outdoor battery cabinet with IP54 protection level, indoor battery rack with IP20 protection
level,inbuild lithium-ion battery and BMS.
*Standard 5Years Warranty.
*Up to 32 inverters connection
*Multi-function and high performance *Local webserver for easy configuration *Support external sensor to realize zero-export
function.

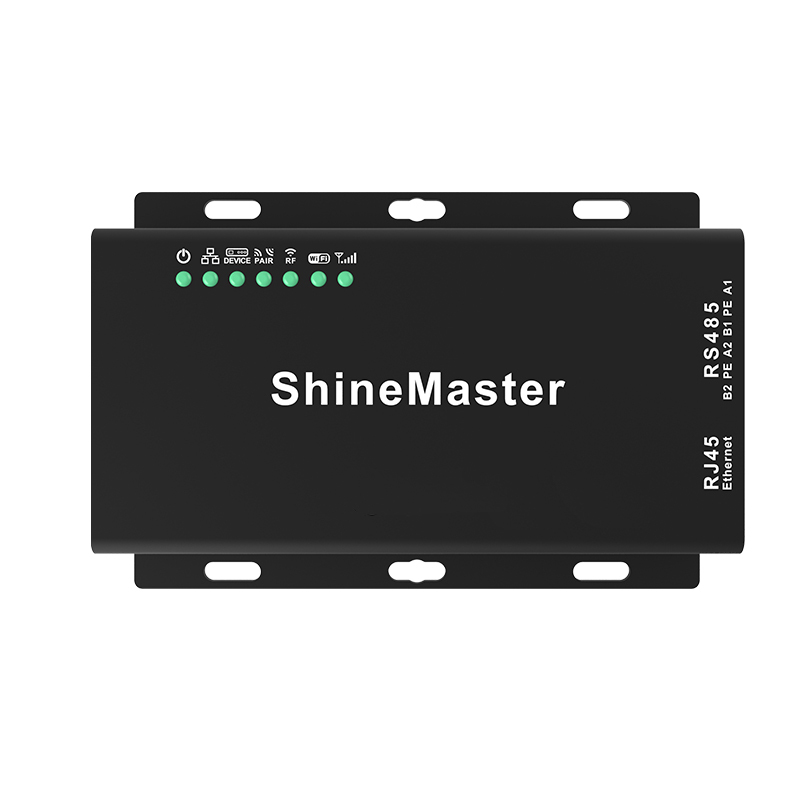

*Datalogger for overall system monitoring, collect operation data from different units via Modbus RS485 and communicate with the
server via internet
*Lightning protection
*Optional string monitoring function
*IP65 environment compatibility
*Flexible design, 8,16 inputs optional
*RS485 communication interface

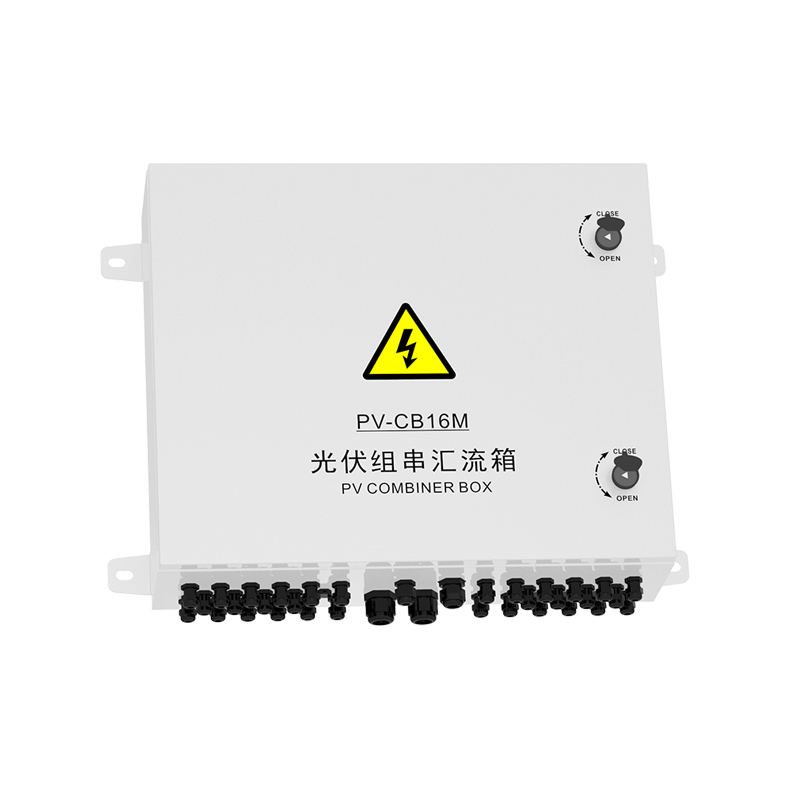

*Input fuse for over current protection *PV combiner box is an accessory for multiple PV string connection, it is with smart
controller inbuilt for monitoring, along with comprehensive protections including fuse and SPD.
*Universal compatible PV connectors
*With CE TUV certificate
*15 Years Warranty
*Customized for roof&ground etc. *Adjustable angle from 0~65 degree
*Compatible with all type solar panel
*Mounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt.
*Mid & End Clamps: 35,40,45,50mm
*L Foot Asphalt Shingle Moount & Hanger Bolt Optional
*Cable Clip & Tie Optional
*Ground Clip & Lugs Optional
*25Years Warranty
Solar System Configuration
|
Complete Set Hybrid Solar System Configuration
|
|||
|
System Model
|
LS30KW-HY
|
LS50KW-HY
|
LS100KW-HY
|
|
Rated Capacity
|
30000W
|
50000W
|
100000W
|
|
Half Cut 550W Solar Panel
|
55pieces
|
96pieces
|
195pieces
|
|
Hybrid Inverter
|
HPS 30
|
HPS 50
|
HPS 100
|
|
PV Combiner Box
|
1piece,5 input 1output
|
1piece,8 input 1output
|
1piece,15 input 1output
|
|
LFP Battery Bank
|
76.8KWH
|
107.52KWH
|
230.4KWH
|
|

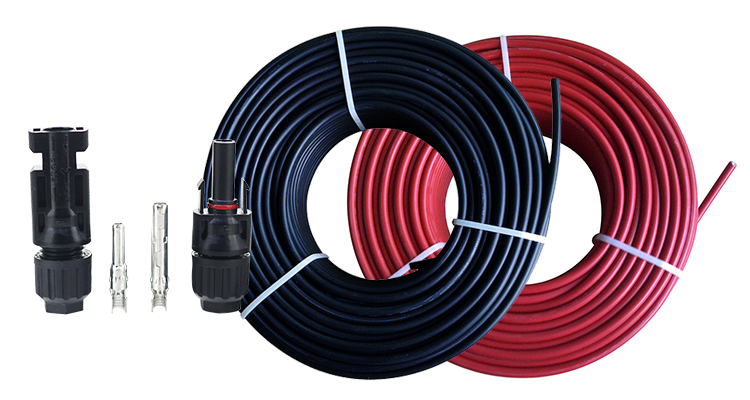

PV Cables
|
1000m
|
1600m
|
3000m
|
|
MC4 Connector
|
20pairs
|
50pairs
|
100pairs
|
|
MC4 Connector
|
Customized based on your installation site
|
||
|
System Model
|
LS120KW-HY
|
LS150KW-HY
|
|
Rated Capacity
|
120000W
|
150000W
|
|
Half Cut 550W Solar Panel
|
234pieces
|
280pieces
|
|
Hybrid Inverter
|
HPS 120
|
HPS 150
|
|
PV Combiner Box
|
1piece,18 input 1output
|
1piece,20input 1output
|
|
LFP Battery Bank
|
322.56KWH
|
430.08KWH
|
|
PV Cables
|
3600m
|
4000m
|
|
MC4 Connector
|
120pairs
|
140pairs
|
|
Mounting System
|
Customized based on your installation site
|
|
| GIFT OPTION | NO, YES |
|---|
