Power
|
440W
|
445W
|
450W
|
455W
|
460W
|
|
Open Circuit Voltage
|
49.2V
|
49.4V
|
49.6V
|
49.8V
|
50V
|
|
Short Circuit Current
|
11.45A
|
11.52A
|
11.58A
|
11.65A
|
11.73A
|
|
Maximun Power Voltage
|
41V
|
41.2V
|
41.4V
|
41.6V
|
41.8V
|
|
Maximum Power Current
|
10.73A
|
10.8A
|
10.87A
|
10.93A
|
11.01A
|
|
Module Efficienty
|
20.2%
|
20.5%
|
20.7%
|
20.9%
|
21.2%
|
|
Output Tolerance
|
+-5W
|
||||
|
Operating Temperature
|
-40°C~+85°C
|
||||
|
Wind Load/Snow Load
|
-40°C~+85°C
|
||||
|
Fuse Current
|
25A
|
||||
Details Images
Mono Half Cut Cell
*Grade A PID resistance solar cell
*Laser accurately cut 9BB 10BB 12BB

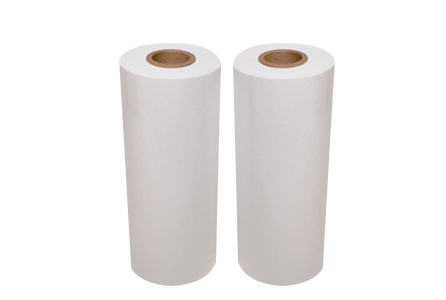

EVA Sealed Film
*Top brand EVA sealed film in China *Resistance in outdoor use

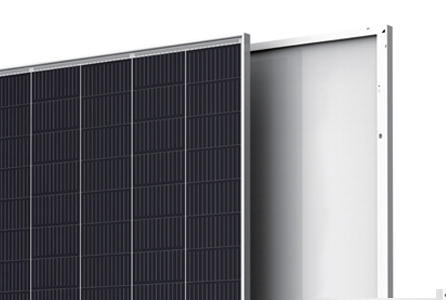

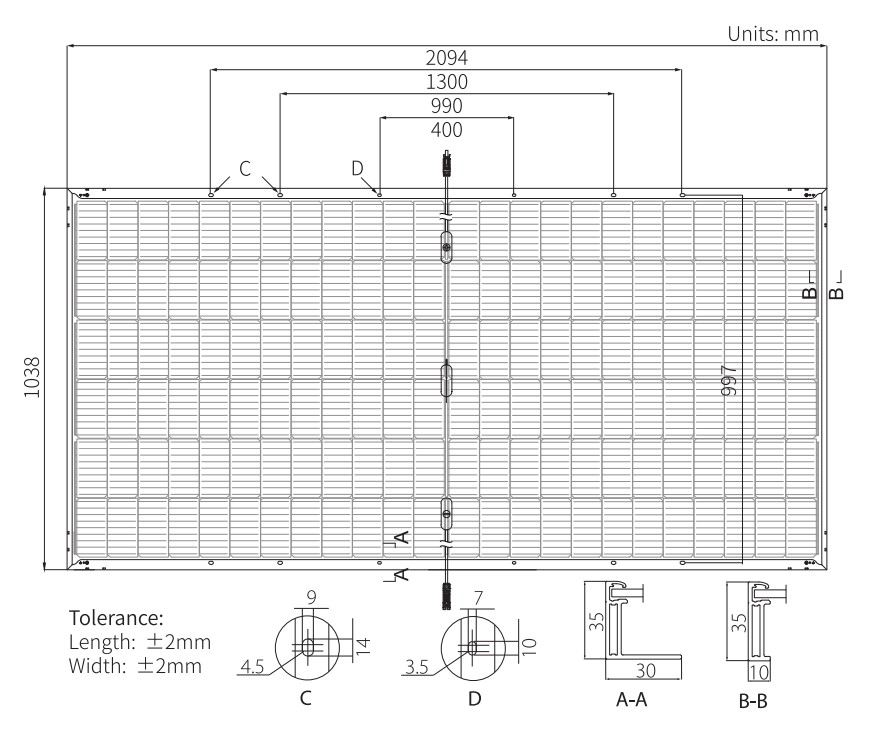

Aluminum frame
*Heavy thickness anodized Alu.Alloy.
*With standard installation holes
*Waterproof grade IP68
*Heat dissipation performance

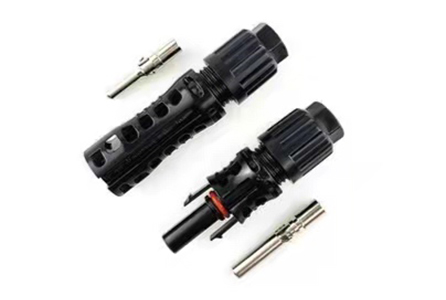

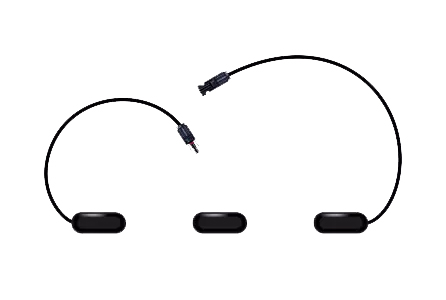

*Universal MC4 PV connector,
* IP 68

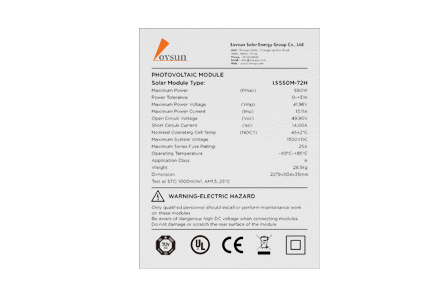

Wet and dry resistance silver label.OEM brand accepted.
| Max. Power | 440w, 450W, 460W, 455w, 445W |
|---|---|
| GIFT OPTION | NO, YES |
