Mechanical Parameters
|
|
Cell Orientation
|
144(6*24)
|
Junction Box
|
IP68,Three diodes
|
Output Cable
|
4mm²,+400,-200mm/±1400mm length can be customized
|
Glass
|
Single glass,3.2mm coated tempered glass
|
Frame
|
Anodized aluminum alloy frame
|
Weight
|
27.2kg
|

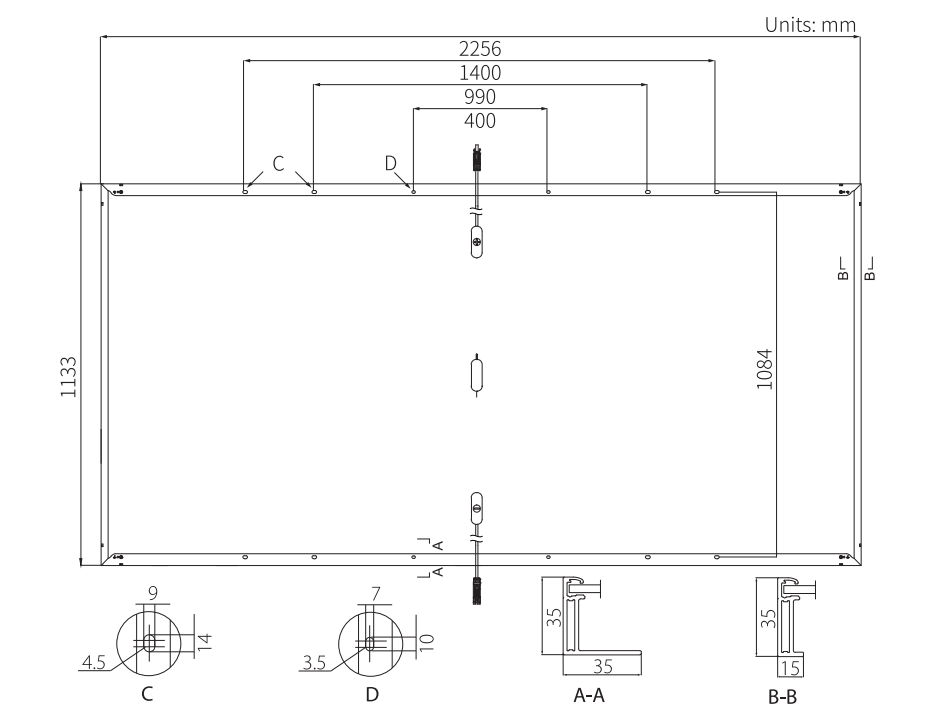

Dimension
|
2278x1134x35mm
|
Packaging
|
31pcs per pallet/155pcs per 20’GP/620pcs per 40’HC
|
Electrical Characteristics
|
|||||
Module Type
|
530W
|
535W
|
540W
|
545W
|
550W
|
Testing Condition
|
STC NOCT
|
STC NOCT
|
STC NOCT
|
STC NOCT
|
STC NOCT
|
Maximum Power (Pmax/W)
|
530 530
|
535 399.5
|
540 403.3
|
545 407.0
|
550 410.7
|
Open Circuit Voltage(Voc/V)
|
49.20 49.20
|
49.35 46.26
|
49.50 46.41
|
49.65 46.55
|
49.80 46.69
|
Short Circuit Current(Isc/A)
|
13.71 13.71
|
13.78 11.15
|
13.85 11.20
|
13.92 11.25
|
13.98 11.31
|
Voltage at Maximum Power(Vmp/V)
|
41.35 41.35
|
41.50 38.64
|
41.65 38.78
|
41.80 38.92
|
41.95 39.06
|
Current at Maximum Power(Imp/A)
|
12.82 12.82
|
12.90 10.34
|
12.97 10.40
|
13.04 10.46
|
13.12 10.52
|
Module Efficiency(%)
|
20.7
|
20.9
|
21.1
|
21.3
|
21.5
|
Solar Cell
–Color sorting ensure consistent appearance on each module
–Service life is as long as 25 years
–Translucency of normal luminosity is increased by 2%
–Heat dissipation
— IP68 protection level
–Conventional standalone edition and engineering custom edition
–Quality diode ensures module running safety
Frame
–Boost bearing capability and prolong service life
–Serrated-clip design tensile strength
–Seal-lip design glue injection
–Silver or black frames are optional
Half-cut Technology
thermal loss on the ribbon will be remarkably reduced and the module’s power increases by 2%. The reliability of module is also
enhanced.
Lower Operating Temperature
correspondingly decreases, and the reliability of module is improved as well as power gain.
Lower Hot Spot Temperature
spot. The long duration of hot spot could bring irreversible degradation of modules.
MAX POWER | 550W, 530W, 535W, 540W, 545W |
---|---|
GIFT OPTION | NO, YES |
