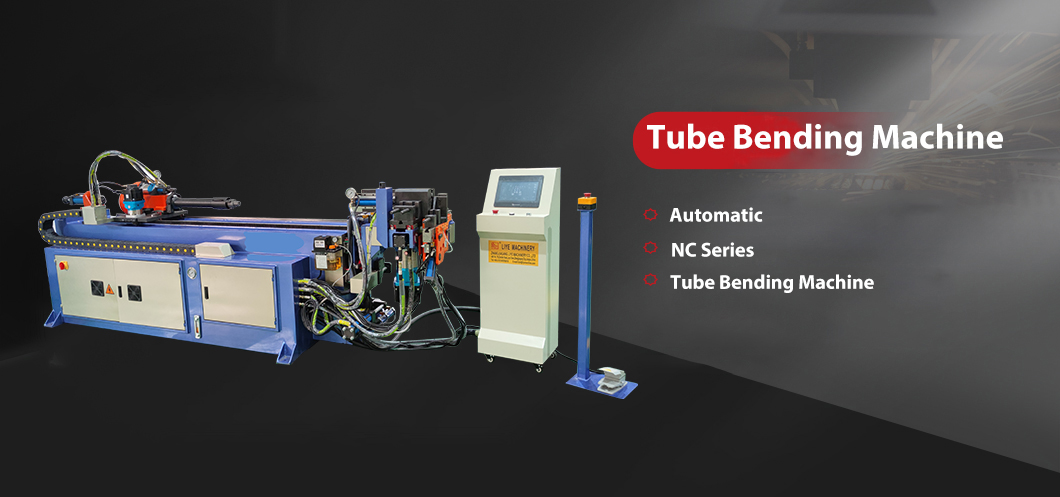

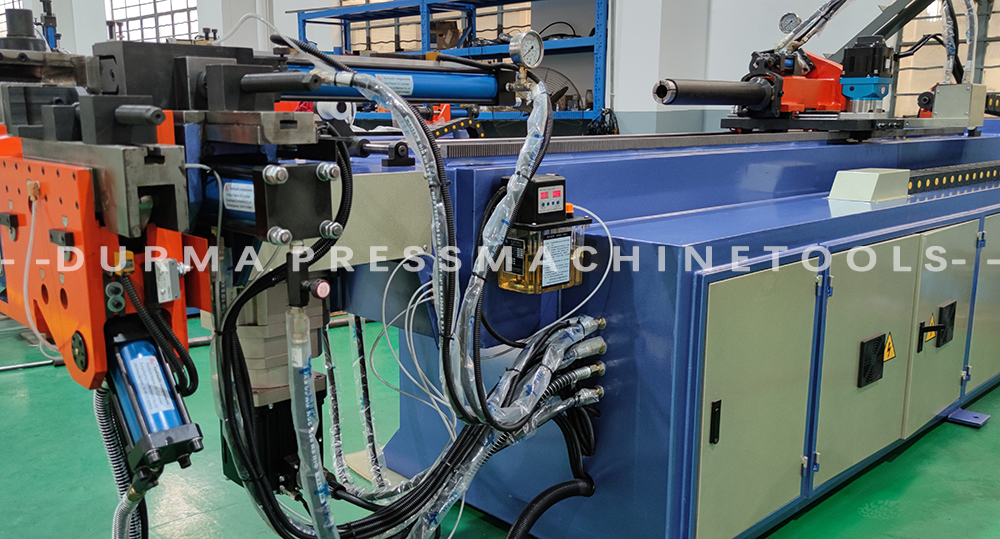

Tube Bending Machine
*The automatic pipe bender can bend and tilt automatically . The pipe fittings can be bent automatically at one time. The tilting is controlled by servo motor and servo driver.The elbow shaft is controlled by oil pressure , and the matching speed is adjusted by regulating valve.
*The electric control system adopts famous brand controller,surper large PLC , with strong performance and good stability.
*With power off memory function,data can be stored for a long time.
*Manual , semi-automatic and full-automatic operation modes can be set.
*With power off memory function,data can be stored for a long time.
*Manual , semi-automatic and full-automatic operation modes can be set.
Detailed Images
01

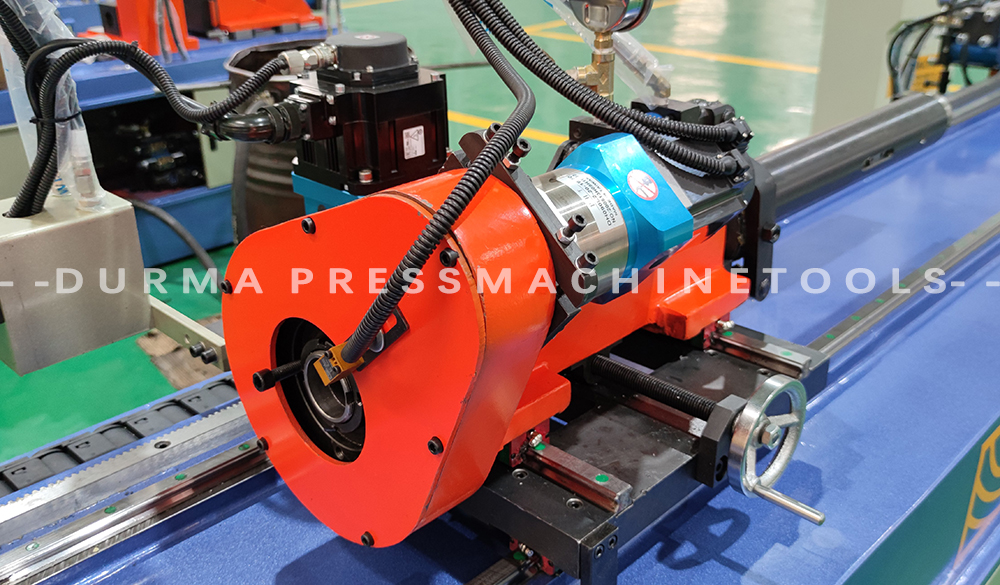

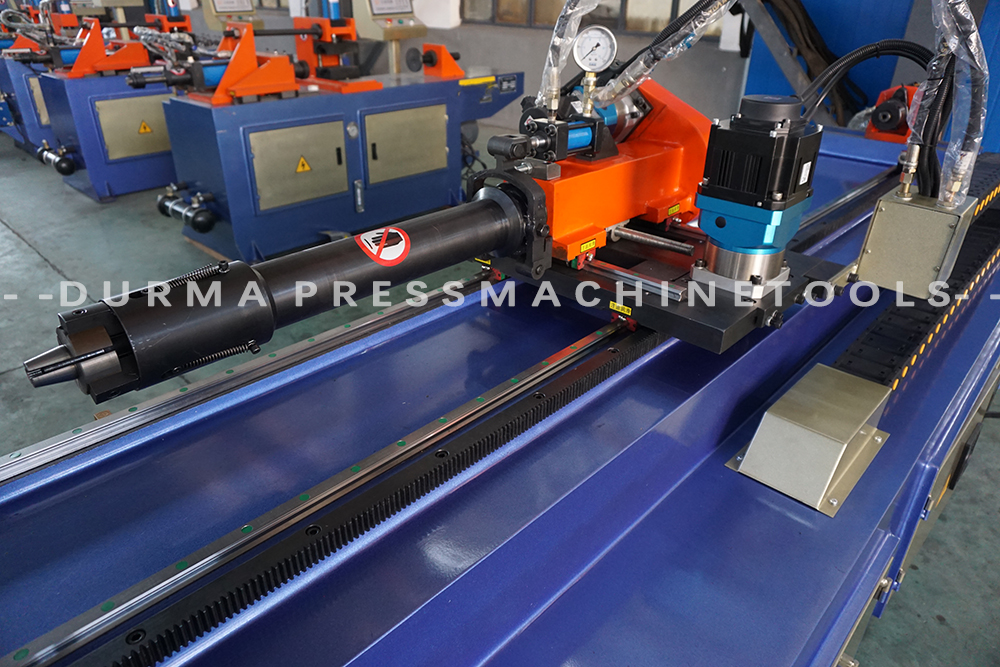

Servo Motor
The feeding and rotary are drived by servo motor. It is with high efficiency, accurate bending angle and feeding.
02

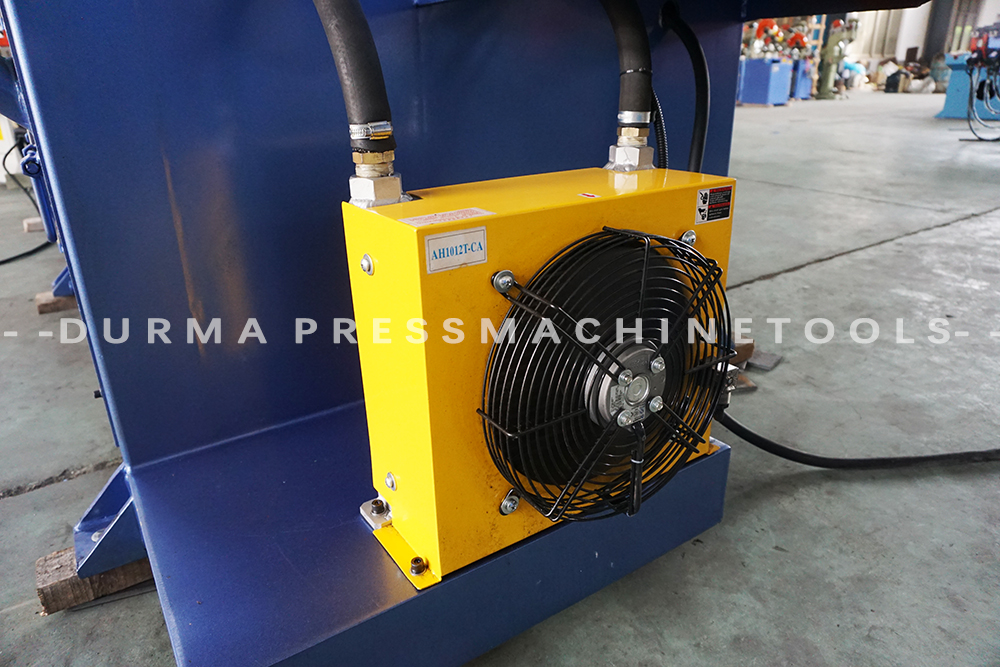

Air cooler
Ensure the stability of the machine for a long time.
03

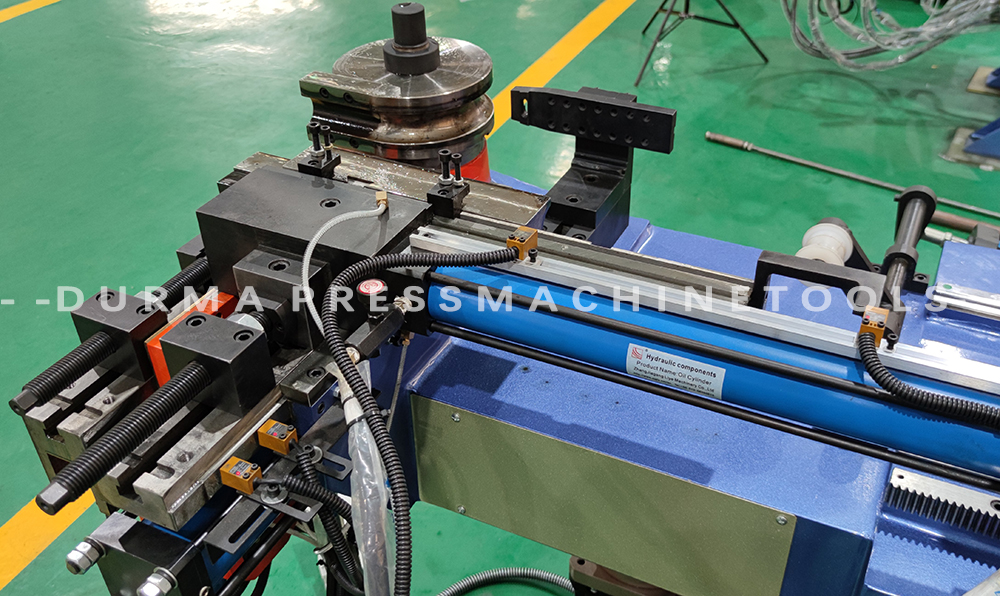

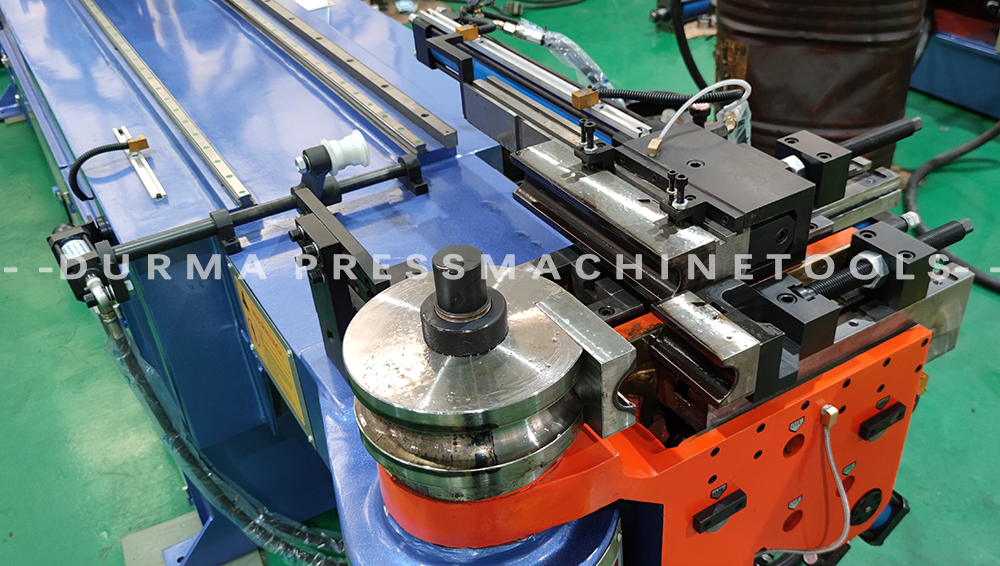

Tube Bending Machine Mould
Mould tooling specification NCB auto pipe bending machine.
Anther details…..
Lubrication Oil
Cylinder
Stuck Tube
Hydraulic components
Electrical from France
Tank Link
|
No.
|
Parameter
|
Unit
|
NC38
|
NC50
|
NC63
|
NC75
|
NC89
|
|
1
|
Max.Pipe Diameter
|
mm
|
Φ38×2
|
Φ50×3
|
Φ63×4
|
Φ75×4
|
Φ89×5
|
|
2
|
Max. Bending Capacity for Carbon Steel Pipe (Outside Dia.*Wall Thickness)
|
mm
|
Φ38×2
|
Φ50×3
|
Φ60×3
|
Φ70×6
|
Φ89×3
|
|
3
|
Max. Bending Capacity for Square Pipe (Outside Dia. * Wall Thickness)
|
mm
|
30*30*2
|
40*50*2
|
50*50*2
|
60*60*2
|
70*70*2
|
|
4
|
Max. Bending Radius
|
mm
|
R200
|
R350
|
R350
|
R400
|
R450
|
|
5
|
Max. Bending Radius
|
mm
|
Depending on pipe
diameter(2 times of pipe outer diameter) |
Depending on pipe
diameter(2 times of pipe outer diameter) |
Depending on pipe
diameter(2 times of pipe outer diameter) |
Depending on pipe
diameter(2 times of pipe outer diameter) |
Depending on pipe
diameter(2 times of pipe outer diameter) |
|
6
|
Max.Core-Piercing Distance
|
degree
|
190
|
190
|
190
|
190
|
190
|
|
7
|
Min.Core-Piercing Distance
|
mm
|
1600
|
2200
|
2600
|
2800
|
3200
|
|
8
|
Main Oil Cylinder Diameter
|
mm
|
75
|
95
|
110
|
140
|
160
|
|
9
|
Die Center height from ground
|
mm
|
950
|
1000
|
1000
|
1100
|
1100
|
|
10
|
Cycling Speed Every 90 Degrees
|
s
|
3
|
4
|
5
|
8
|
10
|
|
11
|
Controller
|
s
|
Single chip
|
Single chip
|
Single chip
|
Single chip
|
Single chip
|
|
12
|
Data Input Mode
|
/
|
Manually input
|
Manually input
|
Manually input
|
Manually input
|
Manually input
|
|
13
|
Max.Bending Number Per Pipe
|
PSC
|
16
|
16
|
16
|
16
|
16
|
|
14
|
Working Speed
|
Deg/sec
|
65
|
55
|
45
|
35
|
30
|
|
|
|
Degree
|
±0.1
|
±0.1
|
±0.1
|
±0.1
|
±0.1
|
|
15
|
Main Motor Power
|
Kw
|
4
|
5.5
|
7.5
|
11
|
11
|
|
16
|
Max. Pressure
|
MPa
|
12
|
12
|
12
|
12
|
10
|
|
17
|
Hydraulic Control Control
|
/
|
Solenoid valve
|
Solenoid valve
|
Solenoid valve
|
Solenoid valve
|
Solenoid valve
|
|
18
|
Oil Tank Volume
|
L
|
150
|
220
|
220
|
250
|
450
|
|
19
|
Machine Weight
|
Kw
|
750
|
1220
|
1500
|
2000
|
4000
|
|
20
|
Outline Dimension
|
mm
|
2400x700x1220
|
3000x700x1030
|
3500x750x1100
|
400x100x110
|
4600x1200x1400
|
